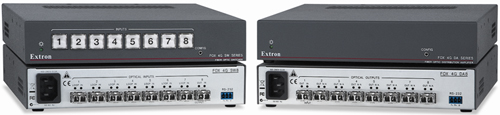

Optical specifications |
|
NOTE |
These switchers are class 1 laser products. They meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
|
|
Number/type |
|
|
Input |
8 singlemode or multimode fiber optic |
|
Output |
1 singlemode or multimode fiber optic with 7 loop throughs for inputs 1-7 |
|
Connectors |
8 LC connectors |
|
Operating distance |
|
|
Singlemode |
30 km (18.75 miles) with singlemode (SM) cables with an Extron singlemode Tx/Rx unit |
|
Multimode |
300 m (985') with 62.5 μm multimode (MM) cables with an Extron multimode Tx/Rx unit
1 km (3280') with 50 μm multimode (MM) cables with an Extron multimode Tx/Rx unit
2 km (6561') with 50 μm 2000 MHz bandwidth laser multimode cable with an Extron multimode Tx/Rx unit |
|
NOTE |
Operating distance is approximate. These are typical distances. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
|
Nominal peak wavelength |
850 nm for MM model, 1310 nm for SM model |
|
Data rate |
4.25 Gbps |
|
Transmission power |
|
|
Singlemode |
-5 dBm, typical |
|
Multimode |
-5 dBm, typical |
|
Maximum receiver sensitivity |
|
|
Singlemode |
-18 dBm, typical |
|
Multimode |
-12 dBm, typical |
|
Optical loss budget |
|
|
Singlemode |
13 dB, maximum |
|
Multimode |
7 dB, maximum |
|
|
|
Control/remote |
|
Serial control ports |
1 RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)
1 RS-232, 2.5 mm mini stereo jack (front panel) |
|
Baud rate and protocol |
9600 baud, 8 data bits, 1 stop bit, no parity |
|
Serial control pin configurations |
Captive screw connector: 1 = Tx, 2 = Rx, 3 = GND
Mini stereo jack: tip = Tx, ring = Rx, sleeve = GND |
|
Program control |
Extron control/configuration program for Windows?
Extron Simple Instruction Set (SIS?) |
|
|
|
General |
|
Power |
100 VAC to 240 VAC, 50-60 Hz, 20 watts, internal |
|
Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
|
Cooling |
Convection, vents on top and sides |
|
Mounting |
|
|
Rack mount |
Yes, with optional 1U rack shelf |
|
Furniture mount |
Yes, with optional under-desk mounting kit or through-desk mounting kit |
|
Enclosure type |
Metal |
|
Enclosure dimensions |
1.7" H x 8.7" W x 9.5" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 24.1 cm D)
(Depth excludes connectors.) |
|
Product weight |
2.4 lbs (1.1 kg) |
|
Shipping weight |
4 lbs (2 kg) |
|
Vibration |
ISTA 1A in carton (International Safe Transit Association) |
|
Regulatory compliance |
|
|
Safety |
CE, c-UL, UL |
|
EMI/EMC |
CE, C-tick, FCC Class A, FDA Class 1, ICES, VCCI |
|
MTBF |
30,000 hours |
|
Warranty |
3 years parts and labor |
